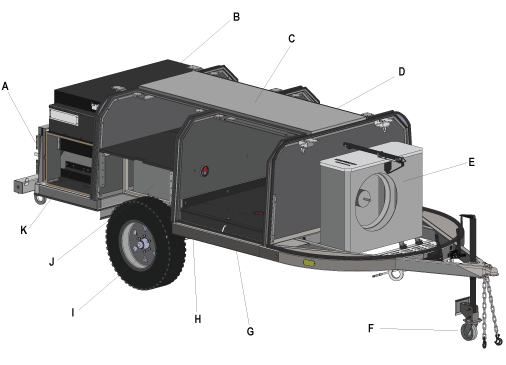

Reeves ICP Trailer Specifications:
| A. |
Tailgate
Tailgate with folding tables.
|
|
B.
|

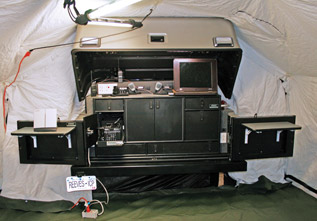

Equipment Console
Constructed of high-quality, durable material. Can hold a wide range of emergency response equipment.
|
|
C.
|
Metal Plate on Top of Trailer
Easily accommodates racks.
|
|
D.
|

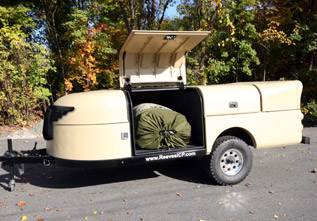

Shelter Storage
Roomy storage compartment offers plentiful space.
|
|
E.
|
Outdoor Condenser Unit
Helps provide heating and cooling throughout command post.
|
|
F.
|
Dolly Wheel with Swivel Foot Plate
Allows trailer to park on soft ground without sinking.
|
|
G.
|
Integrated Fuel Tank
Fuel tank mounted beneath floor area has approximately 36 hours of run time before refueling.
|
|
H.
|
Heavy-Duty Axle
Axle rated at 4,500 pounds.
|
|
I.
|
High Profile All-Terrain Tires
Allows trailer to travel on both improved and unimproved roads.
|
|
J.
|
Generator and Battery Compartment
8.5 kW diesel-powered generator. Optima "yellowtop" battery 12v (group 31) sealed.
|
|
K.
|
Environmental Control Unit (ECU)
ECU provides 24,000 BTUs of cooling and heating.
|
|

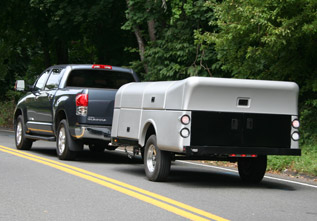

The entire trailer weighs approximately 3,200 lbs, and has an 12” high ground clearance to accommodate off road driving. Additional features include:
- Trailer axle clearance at lowest point is 12".
- 4,500 lbs heavy duty rated axle.
- Includes a 4" steel chassis for superior suspension and steel-rimmed tires.
- Features a 25 degree departure angle.
- Brake lights are standard 7 way hook up to tow vehicle.
- Electric brakes with mechanical park capability.
- Safety chain is welded to the trailer chassis for safety and theft prevention.
- Towable with standard 2” ball.
- Powder-coated chassis prevents rust accumulation and fading.
- Thermo-plastic exterior body panels are resistant to sunlight and fading and pass stringent automotive standards for long-term durability, weatherability, and sunlight exposure.
- Exterior of off road trailer can be cleaned using mild dish detergent or household cleaner such as Pine Sol (no waxes or special cleaners are needed or recommended).
- All hinges, connecting points, etc. can be lubricated using white lithium grease.
- All compartment doors use gas springs for easy lift/close (will last approximately seven years, depending on use/climate).
- Trailer Exterior Length: 16’5”
- Trailer Exterior Width: 6’
- Interior Compartment Storage Space on Trailer: 44 cu. ft. and 50 cu. ft. (without gear).
Generator, AC Power:
Proven industry generator is more efficient and reliable than propane. The incident command trailer includes:
- 8.5 kW diesel powered generator comes standard, (2 by 20 amps). Gasoline option available.
- Twenty gallon integrated fuel tank (approximate 36 hours run time without re-fueling).
Battery:
- Optima “yellowtop” battery 12v (group 31) sealed.
- Lasts up to 2 times longer than traditional flat-plate batteries
- Ideal for sporadic use, fully charged it can sit unused for up to 12 months at room temperature (or below) and still start a vehicle
- 15 times more resistant to vibration than traditional lead-acid batteries
- Integral battery charger system includes smart 3 phase charger, which prevents over charging and drainage.
- Battery will charge on generator supply or with shore power.
ECU:
- Integrated ECU - 24,000 BTU cooling; 24,000 BTU heating
|
|
