DRASH Trailers

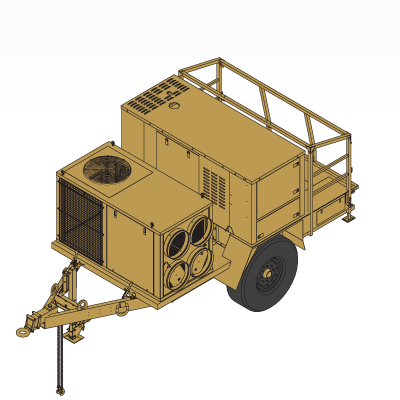

DRASH HP-2C/338 Trailer

HP-2C/388
NSN: 8340-01-513-9267 (Green)
NSN: 8340-01-514-0578 (Tan)

The HP-2C/338 Trailer provides three primary features for the end user of a smaller
DRASH shelter - cargo space, environmental control and power. It has a 58
cubic foot cargo area, includes a 26 gallon fuel tank and comes with a 33 kW Genset
and 8 Ton ECU.


FEATURES
Genset Output [kW] 33
Fuel Tank Capacity [Gal/l] 26 / 98.4
ECU Output [ton] 8
Cargo Volume [cu.f/cu.m.] 58 / 1.6

DIMENSIONS [in./m.] WEIGHTS [lbs./kg.]
Length 177 / 4.5 Tare Pending
Width 86 / 2.2 Gross 4,200 / 1,905
Height 78 / 2.0 Tongue 344 / 156
