Medical Surge Facilities

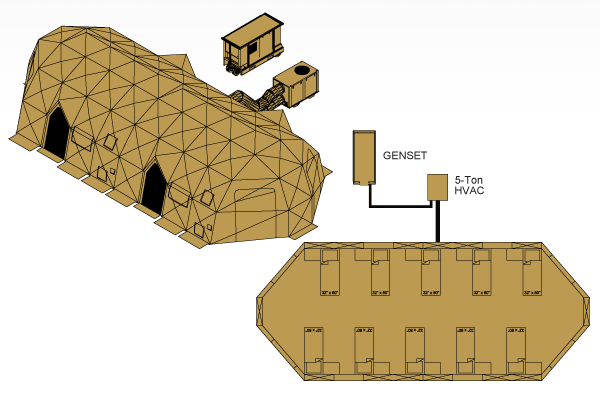

10-Bed DRASH Medical Surge Facility
Note: Genset, cots and furniture (as shown) are optional.

10-Bed
18'W x 46'L x 9.7'H

RHPK0450 (Tan)
Literature Download (pdf)

The Reeves™ 10-Bed Medical Surge Facility provides medical personnel with a rapidly-deployable, rugged, man-portable, climate-controlled, soft-walled shelter with 748 usable square feet of insulated treatment space in which to expand their existing bed capacities in response to a disaster or any emergency situation.

At the heart of the Medical Surge Facility is the DRASH™ Model M Shelter.  The shelter's mobile design allows for quick set-up and take-down with minimal personnel outside of a Hot Zone or devastated area where the existing infrastructure and any medical treatment capabilities have been destroyed.  Deployed or taken down by only four (4) to six (6) personnel within a matter of minutes without the need for special tools or dealing with loose parts, the shelter design is based on patented Deployable Rapid Assembly Shelter (DRASH™) military shelter frame technology.

Each DRASH™ Model M Shelter System features integrated doors, screen windows, ECU and utility ports and comes standard with two (2) MX Center Sections, two (2) MX end caps, seam reinforcement system (SRS), fabric air plenum system, integrated floor, transport-style duffel bags, repair kits, push poles, wind lines and steel pin stake sets.

The Reeves™ 10-Bed Medical Surge Facility also includes a 5-Ton Mobile HVAC System providing 60,000 BTU's of cooling and heating for patient and personnel safety and comfort,  a DRASHLITE 4-Light Set (as part of the M Shelter System) and 2-Light Set providing a total of 660 watts of fluorescent lighting, and two (2) electrical sets that include portable outlets and extension cords. Patient beds are not included.

More comprehensive packages that include power generation and distribution, hardened flooring, patient bedding and medical equipment are also available.

Standard Colors:

Tan (other colors available upon request).

Options:
Bladder and Blower System, Power Generation and Distribution, Hardened Flooring, Patient Bedding, Reeves™ Medical Equipment Storage Bag, etc.

Accessories/Replacement Parts:
MA100755T- M and MX Spares Kit



Shelter Specifications:

Exterior Dimensions:
ft.
19.8 x 47.7 x 11.1
m.
6 x 14.5 x 3.4
Interior Dimensions:
ft.
18 x 46 x 9.7
m.
5.5 x 14 x 3
Usable Area:
sp. ft.
748
sq. m.
69.5
Total Weight:
lbs.
1115
kg.
505.97
Packed Dimensions:
in.
Center Section Only (Two per shelter): 56 x 44.5 x 31.5
Individual End Cap (Two per shelter): 51 x 23 x 23
cm.
Center Section Only (Two per shelter): 142 x 113 x 80
Individual End Cap (Two per shelter): 130 x 58 x 58
Packed Volume:
cu. ft.
Center Section Only (Two per shelter): 45.4
Individual End Cap (Two per shelter): 13.6
cu. m.
Center Section Only (Two per shelter): 1.29
Individual End Cap (Two per shelter): .38
