Large Reeves Fatality Management Center

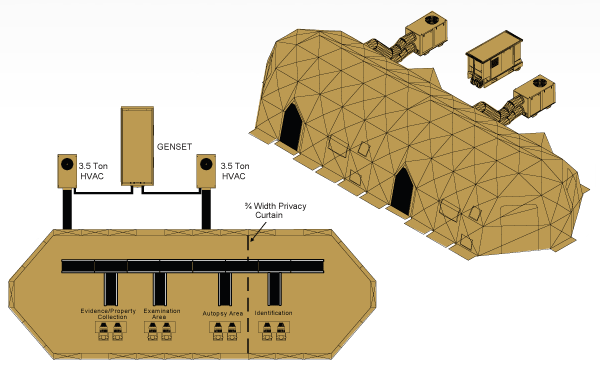

Note: Genset, roller system, privacy curtains and furniture (as shown) are optional.

Large
18'W x 54.5'L x 9.7'H

RHPK0425 (Tan)
Literature Download (pdf)

The Reeves™ Large Fatality Management Center provides response personnel with a rapidly-deployable, rugged, man-portable, climate-controlled, soft-walled shelter that serves as a temporary location in the field for the identification, processing, storage and viewing of casualties following a disaster or emergency.

At the heart of the Large Fatality Management Center is the Large Fatality Management Shelter, a shelter comprised of two DRASH™ MX5 center sections.  The shelter provides a secure location for police and emergency personnel to collect evidence during the course of the investigation and acts as a temporary Family Assistance Center for the identification of those deceased after the incident, offering 902 usable square feet of insulated Management space

Deployed or taken down by only six (6) personnel within a matter of minutes without the need for special tools or dealing with loose parts, the Shelter design is based on patented Deployable Rapid Assembly Shelter (DRASH™) military shelter frame technology. Each Reeves™ Large Fatality Management Center features integrated doors, screen windows, ECU and utility ports and includes two (2) MX5 Center Sections, two (2) MX end caps, seam reinforcement system (SRS), integrated flooring, transport-style duffel bags, repair kits, push poles, wind lines and steel pin stake sets.

The Reeves™ Large Fatality Management Center also includes two (2) 3.5-Ton Mobile ECU Systems providing a total of 84,000 BTU's of cooling and heating for patient and personnel safety and comfort, a fabric air plenum system for the proper distribution of cooling and heating throughout the entire Shelter, two (2) DRASHLITE 4-Light Sets providing a total of 880 watts of fluorescent lighting, and two (2) electrical sets that include portable outlets and extension cords.

More comprehensive packages that include a built-in shelter privacy curtain, power generation and distribution, hardened flooring, 5-foot sectional rollers, mortuary trays, body bags, tables and chairs are also available.

Standard Colors:
Tan (other colors available upon request).

Options:
Bladder and Blower System, Power Generation and Distribution, Hardened Flooring, Mortuary Trays, Body Bags, 5-Foot Sectional Roller Systems, etc.

Accessories/Replacement Parts:
MA100755T- M and MX Spares Kit



Shelter Specifications:

Exterior Dimensions:
ft.
19.8 x 56.2 x 11.1
m.
6 x 17.1 x 3.4
Interior Dimensions:
ft.
18 x 54.5 x 9.7
m.
5.5 x 16.6 x 3
Usable Area:
sp. ft.
902
sq. m.
83.8
Total Weight:
lbs.
1320
kg.
598.7
Packed Dimensions:
in.
Center Section Only (Two per shelter): 55 x 42 x 29
Individual End Cap (Two per shelter): 51 x 23 x 23
cm.
Center Section Only (Two per shelter): 140 x 107 x 74
Individual End Cap (Two per shelter): 130 x 58 x 58
Packed Volume:
cu. ft.
Center Section Only (Two per shelter): 38.8
Individual End Cap (Two per shelter): 15.6
cu. m.
Center Section Only (Two per shelter): 1.1
Individual End Cap (Two per shelter): .44
