Fatality Management Centers
Small Reeves Fatality Management Center

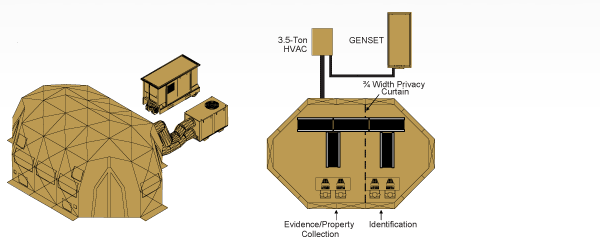

Note: Genset, roller system, privacy curtains and furniture (as shown) are optional.

Small
13.6'W x 21.6'L x 8.6'H

RHPK0300 (Tan)
Literature Download (pdf)

The Reeves Small Fatality Management Center provides response personnel with a rapidly-deployable, rugged, man-portable, climate-controlled, soft-walled shelter that serves as a temporary location in the field for the identification, processing, storage and viewing of casualties following a disaster or emergency.

At the heart of the Small Fatality Management Center is the DRASH Model 3XB Shelter.  The shelter provides a secure location for police and emergency personnel to collect evidence during the course of the investigation and acts as a temporary Family Assistance Center for the identification of those deceased after the incident, offering 250 usable square feet of insulated Management space.

Deployed or taken down by only four (4) personnel within a matter of minutes without the need for special tools or dealing with loose parts, the shelter design is based on patented Deployable Rapid Assembly Shelter (DRASH) military shelter frame technology.  Each DRASH Model 3XB Shelter features integrated doors, screen windows, ECU and utility ports and comes standard with integrated flooring, transport-style duffel bag, repair kit, push poles, wind lines and a steel pin stake set.

The Reeves Small Fatality Management Center also includes a 3.5-Ton Mobile ECU System providing 42,000 BTU's of cooling and heating for patient and personnel safety and comfort, a fabric air plenum system for the proper distribution of cooling and heating throughout the entire shelter, a DRASHLITE 2-Light Set providing a total of 220 watts of fluorescent lighting, and an electrical set that includes portable outlets and extension cords.

More comprehensive packages that include a built-in Shelter privacy curtain, power generation and distribution, hardened flooring, 5-foot sectional rollers, mortuary trays, body bags, tables and chairs are also available.

Standard Colors:
Tan (other colors available upon request)

Options:
Power Generation and Distribution, Hardened Flooring, Mortuary Trays, Body Bags, 5-Foot Sectional Roller Systems, etc.

Accessories/Replacement Parts:
F329601 - XB Strut Blue
F329631 - XB Strut Red
F329751 - XB Strut Green
F329781 - XB Strut Yellow
190223T - XB Spare Parts Kit
RDSP0032 - XB Lifting Pole



Shelter Specifications:

Exterior Dimensions:
ft.
15.3 x 23.3 x 10.6
m.
4.7 x 7.1 x 3.2
Interior Dimensions:
ft.
13.6 x 21.6 x 8.6
m.
4.1 x 6.6 x 2.6
Usable Area:
sp. ft.
249
sq. m.
23
Total Weight:
lbs.
403
kg.
182.8
Packed Dimensions:
in.
52 x 41 x 27.8
cm.
132 x 104 x 70
Packed Volume:
cu. ft.
34
cu. m.
.96
