Casualty Collection Points

10-Bed Casualty Collection Point

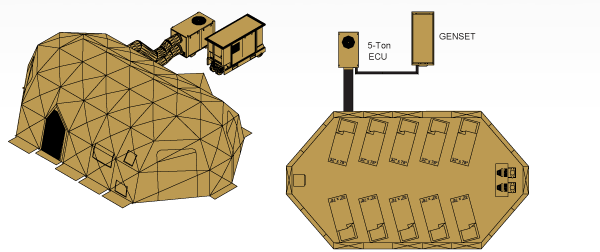

Note: Genset, cots and furniture (as shown) are optional.

10-BED
18' W x 33.3' L x 9.7' H
RHPK0125 (Tan)
Literature Download (pdf)

The Reeves™ 10-Bed Casualty Collection Point provides medical and emergency personnel with a rapidly-deployable, rugged, man-portable, climate-controlled, soft-walled shelter in which to administer emergency field treatment to victims of disasters or trauma.

The Reeves™ 10-Bed Casualty Collection Point is centered around the DRASH™ Model MX5 Shelter System, which offers 519 usable square feet of insulated working space for the triage, assessment, sorting and treatment of patients before entering or being transported to the primary treatment facility.  Deployed or taken down by only six (6) personnel within a matter of minutes without the need for special tools or dealing with loose parts, the Shelter design is based on patented Deployable Rapid Assembly Shelter (DRASH™) military shelter frame technology.

Each DRASH™ Model MX5 Shelter System features integrated doors, screen windows, ECU and utility ports and comes standard with one (1) MX5 Center Section, two (2) MX end caps, integrated floor, transport-style duffel bags, repair kits, push poles, wind lines and steel pin stake sets.

The Reeves™ 10-Bed DRASH™ Casualty Collection Point also includes a 5-Ton Mobile ECU System providing 60,000 BTU's of cooling and heating for patient and personnel safety and comfort, a fabric air plenum system for the proper distribution of cooling and heating throughout the entire Shelter, a DRASHLITE 4-Light Set providing a total of 440 watts of fluorescent lighting, and an an electrical set that includes portable outlets and extension cords.

Options:
Power Generation and Distribution, Patient Bedding, Hardened Flooring, Reeves™ Medical Equipment Storage Bag, etc.

Standard Colors:
Tan (other colors available upon request).

Accessories/Replacement Parts:
MA100755T - M and MX Spares Kit



Shelter Specifications:

Exterior Dimensions:
ft.
19.8 x 34.9 x 11.1
m.
6 x 10.6 x 3.4
Interior Dimensions:
ft.
18 x 33.3 x 9.7
m.
5.5 x 10.1 x 3
Usable Area:
sp. ft.
519
sq. m.
48.2
Total Weight:
lbs.
724
kg.
328.4
Packed Dimensions:
in.
Center Section Only: 55 x 42 x 29
Individual End Cap (Two per shelter): 51 x 23 x 23
cm.
Center Section Only: 140 x 107 x 74
Individual End Cap (Two per shelter): 130 x 58 x 58
Packed Volume:
cu. ft.
Center Section Only: 38.8
Individual End Cap (Two per shelter): 15.6
cu. m.
Center Section Only: 1.1
Individual End Cap (Two per shelter): .44
