Large
18'W x 33.3'L x 9.7'H
RHPK0275 (Tan)
Literature Download (pdf)

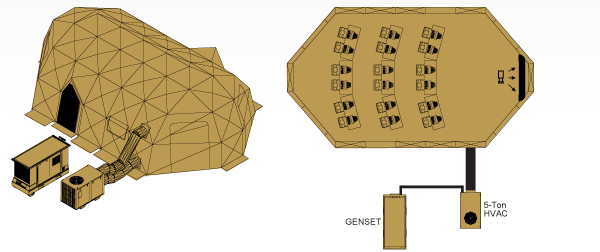

The Reeves™ Large Incident Command Post provides response personnel with a rapidly-deployable, rugged, man-portable, climate-controlled, soft-walled shelter from which an incident commander can assign and direct rescue and relief efforts from the field during an emergency or crisis.
At the heart of the Large Incident Command Post is the DRASH™ Model MX5 Shelter. All Incident Command functions including the assignment of personnel, equipment, communications and procedures for the planning, coordinating and direction of all agencies involved can be accomplished from this one centralized location offering 519 usable square feet of insulated Command space. Deployed or taken down by only six (6) personnel within a matter of minutes without the need for special tools or dealing with loose parts, the Shelter design is based on patented Deployable Rapid Assembly Shelter (DRASH™) military shelter frame technology.
Each DRASH™ Model MX5 Shelter System features integrated doors, screen windows, ECU and utility ports and comes standard with one (1) MX5 Center Section, two (2) MX end caps, integrated flooring, transport-style duffel bags, repair kits, push poles, wind lines and steel pin stake sets.
The Reeves™ Large Incident Command Post also includes a 5-Ton Mobile ECU System providing 60,000 BTU's of cooling and heating for patient and personnel safety and comfort, a fabric air plenum system for the proper distribution of cooling and heating throughout the entire Shelter, a DRASHLITE 4-Light Set providing a total of 440 watts of fluorescent lighting, and two (2) electrical sets that include portable outlets and extension cords.
More comprehensive packages that include power generation and distribution, hardened flooring, projectors, screens, chairs and "smart" tables are also available.
Standard Colors:
Tan (other colors available upon request).
Options:
Bladder and Blower System, Power Generation and Distribution, Hardened Flooring, A/V Equipment, etc.
Accessories/Replacement Parts:
MA100755T- M and MX Spares Kit
Shelter Specifications:
|
Exterior Dimensions:
|
ft.
|
19.8 x 34.9 x 11.1
|
|
m.
|
6 x 10.6 x 3.4
|
|
Interior Dimensions:
|
ft.
|
18 x 33.3 x 9.7
|
|
m.
|
5.5 x 10.1 x 3
|
|
Usable Area:
|
sp. ft.
|
519
|
|
sq. m.
|
48.2
|
|
Total Weight:
|
lbs.
|
724
|
|
kg.
|
328.4
|
|
Packed Dimensions:
|
in.
|
Center Section Only: 55 x 42 x 29
Individual End Cap (Two per shelter): 51 x 23 x 23
|
|
cm.
|
Center Section Only: 140 x 107 x 74
Individual End Cap (Two per shelter): 130 x 58 x 58
|
|
Packed Volume:
|
cu. ft.
|
Center Section Only: 38.8
Individual End Cap (Two per shelter): 15.6
|
|
cu. m.
|
Center Section Only: 1.1
Individual End Cap (Two per shelter): .44
|
|
