25-Bed
18'W x 75.8'L x 9.7'H
RHPK0400 (Tan)
Literature Download (pdf)

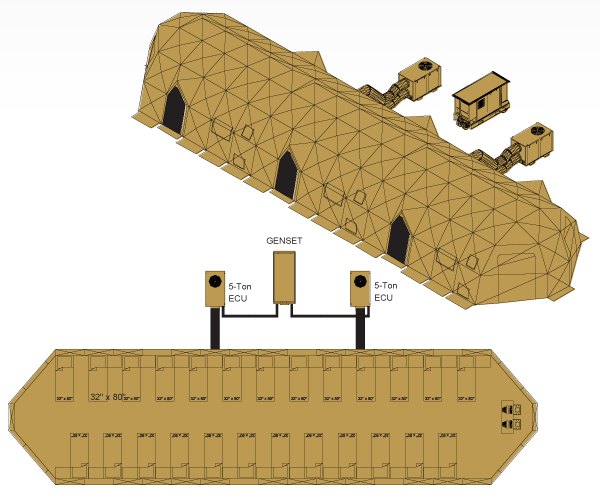

The Reeves™ 25-Bed Medical Surge Facility provides medical personnel with a rapidly-deployable, rugged, man-portable, climate-controlled, soft-walled shelter with 1285 usable square feet of insulated treatment space in which to expand their existing bed capacities in response to a disaster or any emergency situation.
At the heart of the Medical Surge Facility is the 25-Bed Medical Surge Shelter - a shelter comprised of three DRASH™ MX5 center sections. The shelter's mobile design allows for quick set-up and take-down with minimal personnel outside of a Hot Zone or devastated area where the existing infrastructure and any medical treatment capabilities have been destroyed.
Deployed or taken down by only six (6) personnel within a matter of minutes without the need for special tools or dealing with loose parts, the shelter design is based on patented Deployable Rapid Assembly Shelter (DRASH™) military shelter frame technology.
Each 25-Bed Medical Surge Shelter features integrated doors, screen windows, ECU and utility ports and includes three (3) MX5 Center Sections, two (2) MX end caps, two (2) seam reinforcement systems (SRS), integrated flooring, transport-style duffel bags, repair kits, push poles, wind lines and steel pin stake sets.
The Reeves™ 25-Bed Medical Surge Facility also includes two (2) 5-Ton Mobile HVAC Systems providing a total of 120,000 BTU's of cooling and for patient and personnel safety and comfort, a fabric air plenum system for the proper distribution of cooling and heating throughout the entire Shelter, three (3) DRASHLITE 4-Light Sets providing a total of 1320 watts of fluorescent lighting, and three (3) electrical sets that include portable outlets and extension cords. Patient beds are not included.
More comprehensive packages that include power generation and distribution, hardened flooring, patient bedding and medical equipment are also available.
Standard Colors:
Tan (other colors available upon request).
Options:
DRASH™ Lights, Hardened Flooring, Bladder/Blower System, Reeves™ Medical Equipment Storage Bag, etc.
Accessories/Replacement Parts:
MA100755T- M and MX Spares Kit
Shelter Specifications:
|
Exterior Dimensions:
|
ft.
|
19.8 x 77.4 x 11
|
|
m.
|
6 x 23.6 x 3.4
|
|
Interior Dimensions:
|
ft.
|
18 x 75.8 x 9.7
|
|
m.
|
5.5 x 23.1 x 3
|
|
Usable Area:
|
sp. ft.
|
1285
|
|
sq. m.
|
119.3
|
|
Total Weight:
|
lbs.
|
1910
|
|
kg.
|
866.4
|
|
Packed Dimensions:
|
in.
|
Center Section Only (Three per shelter): 55 x 42 x 29
Individual End Cap (Two per shelter): 51 x 23 x 23
|
|
cm.
|
Center Section Only (Three per shelter): 140 x 107 x 74
Individual End Cap (Two per shelter): 130 x 58 x 58
|
|
Packed Volume:
|
cu. ft.
|
Center Section Only (Three per shelter): 38.8
Individual End Cap (Two per shelter): 15.6
|
|
cu. m.
|
Center Section Only (Three per shelter): 1.1
Individual End Cap (Two per shelter): .44
|
|
