Life Support Areas

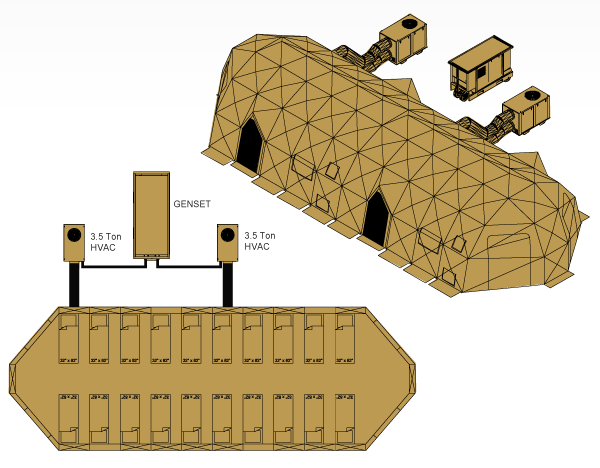

20-Bed DRASH Incident Camp Package
Note: Genset and cots (as shown) are optional.

20-Bed
18'W x 54.5'L x 9.7'H

RHPK0375 (Tan)
Literature Download (pdf)

The Reeves™ rapidly-deployable 20-Bed Life Support Area provides response personnel and victims with a rapidly-deployable, rugged, man-portable, climate-controlled, soft-walled shelter that serves as temporary housing in the field during any emergency or crisis.

At the heart of the Life Support Area is the 20-Bed Shelter - a DRASH™ shelter comprised of two MX5 shelters.  The shelter is designed to provide temporary living quarters for those displaced during a disaster or a secure area for emergency personnel to be housed during a deployment, drill or exercise, offering 902 usable square feet of insulated space.  Deployed or taken down by only six (6) personnel within a matter of minutes without the need for special tools or dealing with loose parts, the Shelter design is based on patented Deployable Rapid Assembly Shelter (DRASH™) military shelter frame technology.

Each 20-Bed Life Support Area Shelter features integrated doors, screen windows, ECU and utility ports and includes two (2) MX5 Center Sections, two (2) MX end caps, seam reinforcement system (SRS), integrated flooring, transport-style duffel bags, repair kits, push poles, wind lines and steel pin stake sets.

The Reeves™ 20-Bed Life Support Area also includes two (2) 3.5-Ton Mobile ECU Systems providing a total of 84,000 BTU's of cooling and heating for patient and personnel safety and comfort, a fabric air plenum system for the proper distribution of cooling and heating throughout the entire Shelter, two (2) DRASHLITE 4-Light Sets providing a total of 880 watts of fluorescent lighting, and two (2) electrical sets that include portable outlets and extension cords.

More comprehensive packages that include power generation and distribution, hardened flooring, cots and bedding are also available.

Standard Colors:
Tan (other colors available upon request).

Options:
DRASH Lights, Hardened Flooring, Bladder/Blower System, etc.

Accessories/Replacement Parts:
MA100755T- M and MX Spares Kit



Shelter Specifications:

Exterior Dimensions:
ft.
19.8 x 56.2 x 11.1
m.
6 x 17.1 x 3.4
Interior Dimensions:
ft.
18 x 54.5 x 9.7
m.
5.5 x 16.6 x 3
Usable Area:
sp. ft.
902
sq. m.
83.8
Total Weight:
lbs.
1320
kg.
598.7
Packed Dimensions:
in.
Center Section Only (Two per shelter): 55 x 42 x 29
Individual End Cap (Two per shelter): 51 x 23 x 23
cm.
Center Section Only (Two per shelter): 140 x 107 x 74
Individual End Cap (Two per shelter): 130 x 58 x 58
Packed Volume:
cu. ft.
Center Section Only (Two per shelter): 38.8
Individual End Cap (Two per shelter): 15.6
cu. m.
Center Section Only (Two per shelter): 1.1
Individual End Cap (Two per shelter): .44
