Mobile Field Shower System
DRASH Mobile Hygiene System

Literature Download (pdf)

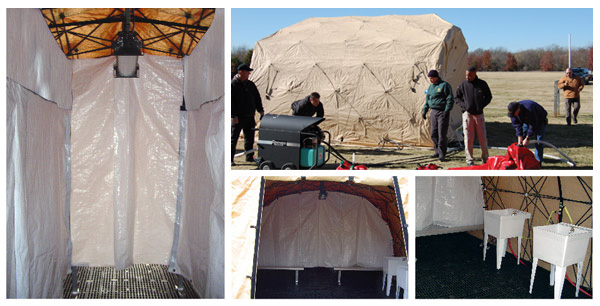

Set up within minutes, the Reeves™ Mobile Field Shower System makes it possible to establish shower facilities anywhere, any time. Created by combining DRASH™ shelter technology with a state-of-the-art water supply system, this unique, independently operational design includes private shower stalls and a common wash area with wash basins and benches. All Reeves™ Field Shower Systems are available in blue, green and tan.

FEATURES:

Shelter System:

  • Various shower and sink configurations available to meet customers' needs.
  • Includes a durable, fire retardant, mold and mildew resistant, waterproof cover.
  • Frame is manufactured from Titanite®, an aerospace composite material with superior structural properties.
  • Shelter sets up in minutes without the use of special tools.
  • Plumbing lines are integrated into the interior shelter frame, allowing for an easier and more rapid set up. They are supplied by 35-foot, heavy-duty, abrasion-resistant hoses that connect them to the water heater via Cam-lock fittings.
  • Wash basins and six-foot long benches form the common wash area.
  • Individual shower stalls include 2.5 gpm showerheads with quick-connect fittings and built-in shut offs.
  • A rigid-wall containment berm features 8” high side walls and raised floors for optimum water runoff conditions.
  • “Intellipump” automatically turns on with the presence of water and turns off when level is below ¼ inch.

G2 Water Heating System:

  • 425,000 BTU/28 gpm self-heating, thermostatically-controlled system.
  • 10-gallon onboard fuel tank with drain plug; multi-fuel use. Fuels include diesel, kerosene, home heating oil, JP4 or JP8.
  • Thermostatically-controlled, built-in, anti-scald protection device; in-line GFI protection.
  • 1/5 hp, 120V, 60 hz, single phase burner motor runs at 3,450 rpm.
  • Solid state, no flame electrical system ignites on water flow.
