Medium
13.6'W x 33.6'L x 8.6'H
RHPK0325 (Tan)
Literature Download (pdf)

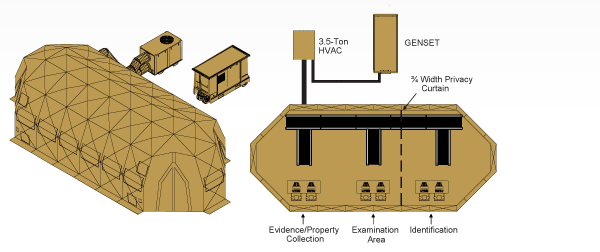

The Reeves™ Medium Fatality Management Center provides response personnel with a rapidly-deployable, rugged, man-portable, climate-controlled, soft-walled shelter that serves as a temporary location in the field for the identification, processing, storage and viewing of casualties following a disaster or emergency.
At the heart of the Medium Fatality Management Center is the DRASH™ Model 6XB Shelter. The shelter provides a secure location for police and emergency personnel to collect evidence during the course of an investigation and acts as a temporary Family Assistance Center for the identification of those deceased after an incident, offering 414 usable square feet of insulated Management space.
Deployed or taken down by only six (6) personnel within a matter of minutes without the need for special tools or dealing with loose parts, the shelter design is based on patented Deployable Rapid Assembly Shelter (DRASH™) military shelter frame technology. Each DRASH™ Model 6XB Shelter features integrated doors, screen windows, ECU and utility ports and comes standard with integrated flooring, transport-style duffel bag, repair kit, push poles, wind lines and a steel pin stake set.
The Reeves™ Medium Fatality Management Center also includes a 3.5-Ton Mobile ECU System providing 42,000 BTU's of cooling and heating for patient and personnel safety and comfort, a fabric air plenum system for the proper distribution of cooling and heating throughout the entire shelter, a DRASHLITE 4-Light Set providing a total of 440 watts of fluorescent lighting, and an electrical set that includes portable outlets and extension cords.
More comprehensive packages that include a built-in Shelter privacy curtain, power generation and distribution, hardened flooring, 5-foot sectional rollers, mortuary trays, body bags, tables and chairs are also available.
Standard Colors:
Tan (other colors available upon request).
Options:
Bladder and Blower System, Power Generation and Distribution, Hardened Flooring, Mortuary Trays, Body Bags, 5-Foot Sectional Roller Systems, etc.
Accessories/Replacement Parts:
F329601 - XB Strut Blue
F329631 - XB Strut Red
F329751 - XB Strut Green
F329781 - XB Strut Yellow
190223T - XB Spare Parts Kit
RDSP0032 - XB Lifting Pole
Shelter Specifications:
|
Exterior Dimensions:
|
ft.
|
15.3 x 35.3 x 10.6
|
|
m.
|
4.7 x 10.8 x 3.2
|
|
Interior Dimensions:
|
ft.
|
13.6 x 33.6 x 8.6
|
|
m.
|
10.2 x 4.1 x 2.6
|
|
Usable Area:
|
sp. ft.
|
413.4
|
|
sq. m.
|
38.4
|
|
Total Weight:
|
lbs.
|
644
|
|
kg.
|
292.1
|
|
Packed Dimensions:
|
in.
|
52 x 49.9 x 31.5
|
|
cm.
|
132 x 127 x 80
|
|
Packed Volume:
|
cu. ft.
|
47.3
|
|
cu. m.
|
1.3
|
|
