3-Lane DRASH First Response Decontamination System

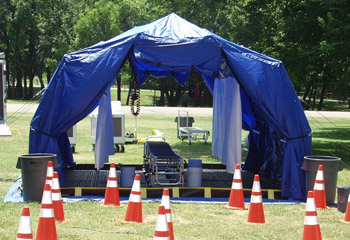

3-Lane Reeves™ First Response
14.5'W x 16'L x 8.8'H
RDPK0010 (Blue)
Literature Download (pdf)

Perfect for First Responders, the durable, fully-operational 3-Lane Reeves™ First Response Decontamination System is a rapidly deployable system crafted to effectively decontaminate both male and female ambulatory and non-ambulatory patients in the event of a mass casualty incident.  Perfect for deploying in any setting with only 2-4 personnel and built to withstand winds, temperature and the elements, this System includes an open interior for rapid decontamination, curtains for patient modesty, a collapsible-wall berm for complete run-off containment, 2.5 gallon-per-minute showerheads and spray wands, and a self-heating, thermostatically-controlled multi-fuel water heater that provides up to 28 gallons per minute – all deployable in less than six (6) minutes.


 System Features:

  • Rapidly deployable system for effective NBC decontamination of male and female ambulatory and non-ambulatory patients
  • No center poles or locking devices are needed to keep the shelter erect
  • Shelter frame is manufactured from Titanite™, an aerospace material with a flex strength 270% greater than that of aluminum
  • Shelter will remain functional with up to 60% of the frame damaged or broken
  • Durable, pre-attached cover is fire-retardant, mildew-resistant, water-repellent and highly abrasion- and UV-resistant
  • Ideal lane configuration for a mass casualty incident with a very wide non-ambulatory center lane, and male and female ambulatory lanes on each side
  • Wider lanes provide ideal working space for responders and patients
  • Lane division curtains provide modesty between sexes
  • Shelter sits inside of collapsible-wall berm for complete run-off containment
  • 2.5 gallon-per-minute showerheads and spray wands supply the water flow necessary for thorough patient decontamination
  • Water heating and solution injection unit provides a high volume of heated decon solution and rinse water to the integrated showers, allowing for a safer and more comfortable patient decontamination process


System Components:

  • 14.5'W x 16’L Single Exterior Cover Reeves "Responder" Shelter (includes push poles, stake set, repair kit and transport bag)
  • 2-Line Integrated Plumbing Package - 8 Showerheads, 2 Black Spray Wands and 2 Red Spray Wands
  • 3-Lane Curtain Package
  • 17’W x 17’L x 8”H Collapsible-Wall Primary Containment Berm
  • 3’W x 8’L x 3.5”H Patient Elevation Grids (8)
  • 30 GPM Submersible Water Pump with 25-Foot, 1 ½” Discharge Hose
  • 16’ Collapsible Patient Roller System
  • 425,000 BTU, up to 28 GPM Multi-Fuel Water Heater w/ Decon Solution Injection System (includes two(2) 35-foot, ½” water supply hoses - one (1) black and one (1) red)
  • Water Supply Adapter Kit

Standard Colors:

Comes standard in Blue. OD Green, Red and Tan available upon request.


Waste Water Bladders
50W Lights
Additional Roller System
Diesel Generator
Pre/Post Decon Kits
Mesh Decon Litters
Spine Boards

Accessories/Replacement Parts:

F329601 - XB Strut Blue
F329631 - XB Strut Red
F329751 - XB Strut Green
F329781 - XB Strut Yellow
RDA0020 - 3-Lane Curtain Set
RDIP0009 - 2-Line Integrated Plumbing Package
RDIP0013 - Plumbing Repair Kit
RDIP0014 - 2.5 GPM Shower Head
RDIP0015 - Black Spray Wand
RDIP0016 - Red Spray Wand
RD30105H - 35-Foot, 1/2" Black Supply Hose
RD30100H - 35-Foot, 1/2" Red Supply Hose
RDSP0032 - "XB" Lifting Pole
RDCB0008 - 17'W x 17'L x 8"H Berm



Shelter Exterior Dimensions:
ft. (W x L x H)
16.5 x 16 x 10.5
m. (W x L x H)
5.1 x 4.9 x 3.2
Shelter Interior Dimensions:
ft. (W x L x H)
14.5 x 16 x 8.8
m. (W x L x H)
4.4 x 4.9 x 2.7
Shelter Packed Dimensions:
in. (W x L x H)
33 x 36 x 54
cm. (W x L x H)
84 x 91 x 137
Total System Weight:
