Large Audiovisual System
1005865 / NSN's Pending

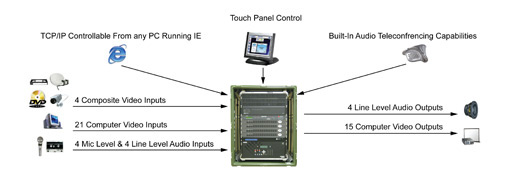

FEATURES:
- Interface via touch panel or secure Internet connection. Touch panels may also be used to view/cue video to be displayed on projection screens.
- Long Distance Video Distribution: System uses RGBHV over CAT5 technology for long distance video distribution with minimal signal degradation.
- Video In: One HD15 and 20 CAT5 Computer Inputs that accept up to 1600 x 1200 resolution. Four BNC Composite (PAL/NTSC) Inputs for DVD/SAT TV or Camera/UAV.
- Audio In: Four Mic level XLR Inputs and four Line Level XLR Inputs for DVD/SAT TV audio.
- Video Out: Three HD15 and twelve CAT5 Computer Outputs.
- Audio Out: Four Line Level XLR outputs, one dedicated to speaker.
- Includes two AC-powered speakers with integrated 20 Watt amplifier that can be daisy chained together for audio distribution.
PACKAGING:
Large AV Case
Molded, weather resistant, OD green case contains Control Processor, four Four Window Video Processors, a Quad Channel Video Scaler, an Audio Mixer and a 32 x 32 RGBHV Matrix Switcher.
Accessory Transport Case 1
Includes cables, touch panel and speakers.
Accessory Transport Case 2
Includes CAT5 TX/RX units and cables.
|
|
Dimensions:
|
in.
|
|
|
cm.
|
|
|
|
lbs.
|
|
|
kg.
|
|
Accessory Transport
Case 1:
|
|
in.
|
|
|
cm.
|
|
|
|
lbs.
|
|
|
kg.
|
|
Accessory Transport
Case 2:
|
|
in.
|
|
|
cm.
|
|
|
|
lbs.
|
|
|
kg.
|
|
|
|
