| Depending on the available mode of transportation, the J Shelter is offered with either a hydraulic container to fit a 453L Pallet or with a manually -tilting J Transport Trailer that allows the shelter to be pushed in place over its inflatable air bladder. The J Shelter can also be combined with an HP-8 UST Trailer to allow for a complete power, environmental control and mobility package that ensures optimum operations even in extreme weather conditions. |

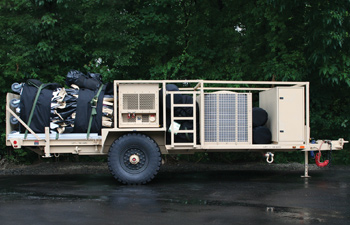

HP-8 Trailer
NSN: Pending
|
FEATURES
|
| Genset Output |
[kW] |
20 or 35 |
| Fuel Tank Capacity |
[Gal/l] |
50 / 189 |
| ECU Output |
[ton] |
N/A |
| Cargo Volume |
[cu.f/cu.m.] |
N/A |
| |
| DIMENSIONS |
[in./m.] |
WEIGHTS |
[lbs./kg.] |
| Length |
190/4.8 |
Tare |
12,000/5,4343 |
| Width |
85/2.16 |
Gross |
12,000/5,4343 |
| Height |
77.5 / 1.97 |
Tongue |
12,000/5,4343 |

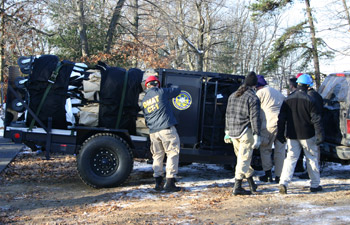

J-Transport Trailer
NSN: 8340-01-533-1695 (Green)
NSN: 8340-01-533-1656 (Tan)
|
FEATURES
|
| Genset Output |
[kW] |
20 or 35 |
| Fuel Tank Capacity |
[Gal/l] |
50 / 189 |
| ECU Output |
[ton] |
N/A |
| Cargo Volume |
[cu.f/cu.m.] |
N/A |
| |
| DIMENSIONS |
[in./m.] |
WEIGHTS |
[lbs./kg.] |
| Length |
190/4.8 |
Tare |
12,000/5,4343 |
| Width |
85/2.16 |
Gross |
12,000/5,4343 |
| Height |
77.5 / 1.97 |
Tongue |
12,000/5,4343 |

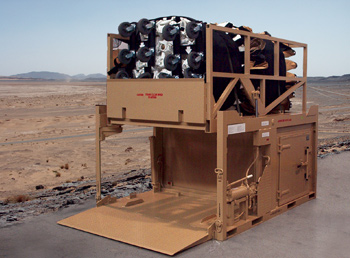

J Hydraulic Container
NSN: 8340-01-533-1651 (Green)
NSN: 8340-01-533-1585 (Tan)
|
FEATURES
|
| Weight (empty) |
[kW] |
20 or 35 |
| Weight (full) |
[Gal/l] |
50 / 189 |
| Dimensions |
[ton] |
N/A |
| Volume |
[cu.f/cu.m.] |
N/A |
The J Hydraulic Container is made to fit a 463L pallet. |
