Large Reeves Emergency Operations Center

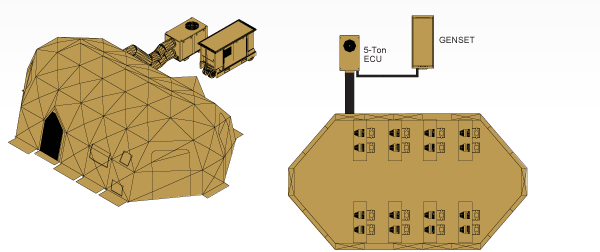

Note: Genset and furniture (as shown) are optional.

18'W x 33.3'L x 9.7'H

RHPK0200 (Tan)
Literature Download (pdf)

The Reeves™ Large Emergency Operations Center provides response personnel with a rapidly-deployable, rugged, man-portable, climate-controlled, soft-walled shelter in which emergency operations can be directed and coordinated from a centralized location in the field.

At the heart of the Large Emergency Operations Center is the DRASH™ Model MX5 Shelter.  Unlike a fixed facility, this shelter can be deployed to the scene of a disaster or emergency and serves as the central logistics point for all emergency preparedness and response, offering 519 usable square feet of insulated field Operations space. Deployed or taken down by only six (6) personnel within a matter of minutes without the need for special tools or dealing with loose parts, the Shelter design is based on patented Deployable Rapid Assembly Shelter (DRASH™) military shelter frame technology.

Each DRASH™ Model MX5 Shelter System features integrated doors, screen windows, ECU and utility ports and comes standard with one (1) MX5 Center Section, two (2) MX end caps, integrated flooring, transport-style duffel bags, repair kits, push poles, wind lines and steel pin stake sets.

The Reeves™ Large Emergency Operations Center also includes a 5-Ton Mobile ECU System providing 60,000 BTU's of cooling and heating for patient and personnel safety and comfort, a fabric air plenum system for the proper distribution of cooling and heating throughout the entire Shelter, a DRASHLITE 4-Light Set providing a total of 440 watts of fluorescent lighting, and two (2) electrical sets that include portable outlets and extension cords.

More comprehensive packages that include power generation and distribution, as well as hardened flooring, are also available.

Standard Colors:
Tan (oher colors available upon request.

Bladder and Blower System, Power Generation and Distribution, Hardened Flooring, etc.

Accessories/Replacement Parts:
MA100755T- M and MX Spares Kit


Shelter Specifications:

Exterior Dimensions:
19.8 x 34.9 x 11.1
6 x 10.6 x 3.4
Interior Dimensions:
18 x 33.3 x 9.7
5.5 x 10.1 x 3
Usable Area:
sp. ft.
sq. m.
Total Weight:
Packed Dimensions:
Center Section Only: 55 x 42 x 29
Individual End Cap (Two per shelter): 51 x 23 x 23
Center Section Only: 140 x 107 x 74
Individual End Cap (Two per shelter): 130 x 58 x 58
Packed Volume:
cu. ft.
Center Section Only: 38.8
Individual End Cap (Two per shelter): 15.6
cu. m.
Center Section Only: 1.1
Individual End Cap (Two per shelter): .44
