Medium
13.6'W x 29.6'L x 8.6'H
RHPK0175 (Tan)
Literature Download (pdf)

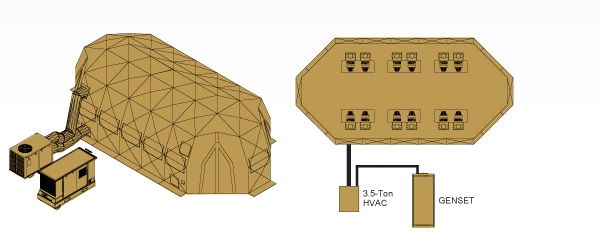

The Reeves™ Medium Emergency Operations Center provides response personnel with a rapidly-deployable, rugged, man-portable, climate-controlled, soft-walled shelter in which emergency operations can be directed and coordinated from a centralized location in the field.
At the heart of the Medium Emergency Operations Center is the DRASH™ Model 5XB Shelter. Unlike a fixed facility, this shelter can be deployed to the scene of the disaster or emergency and serves as the central logistics point for all emergency preparedness and response, offering 359 usable square feet of insulated field Operations space. Deployed or taken down by only 4-6 personnel within a matter of minutes without the need for special tools or dealing with loose parts, the Shelter design is based on patented Deployable Rapid Assembly Shelter (DRASH™) military shelter frame technology.
Each DRASH™ Model 5XB Shelter features integrated doors, screen windows, ECU and utility ports and comes standard with integrated flooring, transport-style duffel bag, repair kit, push poles, wind lines and a steel pin stake set.
The Reeves™ Medium Emergency Operations Center also includes a 3.5-Ton Mobile ECU System providing 42,000 BTU's of cooling and heating for patient and personnel safety and comfort, a fabric air plenum system for the proper distribution of cooling and heating throughout the entire Shelter, a DRASHLITE 4-Light Set providing a total of 440 watts of fluorescent lighting, and an electrical set that includes portable outlets and extension cords.
More comprehensive packages that include power generation and distribution, as well as hardened flooring, are also available.
Standard Colors:
Tan (other colors available upon request).
Options:
Bladder and Blower System, Power Generation and Distribution, Hardened Flooring, etc.
Accessories/Replacement Parts:
F329601 - XB Strut Blue
F329631 - XB Strut Red
F329751 - XB Strut Green
F329781 - XB Strut Yellow
190223T - XB Spare Parts Kit
RDSP0032 - XB Lifting Pole
Shelter Specifications:
Exterior Dimensions:
|
ft.
|
|
m.
|
|
Interior Dimensions:
|
ft.
|
|
m.
|
|
Usable Area:
|
sp. ft.
|
|
sq. m.
|
|
Total Weight:
|
lbs.
|
|
kg.
|
|
Packed Dimensions:
|
in.
|
|
cm.
|
|
Packed Volume:
|
cu. ft.
|
|
cu. m.
|
1.2
|
|
