Small Reeves Emergency Operations Center

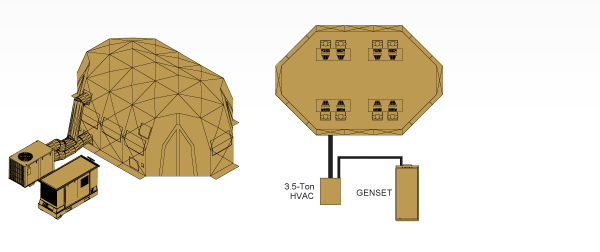

Note: Genset and furniture (as shown) are optional.

Small
13.6'W x 21.6'L x 8.6'H

RHPK0150 (Tan)
Literature Download (pdf)

The Reeves™ Small Emergency Operations Center provides response personnel with a rapidly-deployable, rugged, man-portable, climate-controlled, soft-walled shelter in which Emergency Operations can be directed and coordinated from a centralized location in the field.

At the heart of the Small Emergency Operations Center is the DRASH™ Model 3XB Shelter.  Unlike a fixed facility, this shelter can be deployed to the scene of the disaster or emergency and serves as the central logistics point for all emergency preparedness and response, offering 250 usable square feet of insulated field Operations space. Deployed or taken down by only four (4) personnel within a matter of minutes without the need for special tools or dealing with loose parts, the Shelter design is based on patented Deployable Rapid Assembly Shelter (DRASH™) military shelter frame technology.

Each DRASH™ Model 3XB Shelter features integrated doors, screen windows, ECU and utility ports and comes standard with integrated flooring, transport-style duffel bag, repair kit, push poles, wind lines and a steel pin stake set.

The Reeves™ Small Emergency Operations Center also includes a 3.5-Ton Mobile ECU System providing 42,000 BTU's of cooling and heating for patient and personnel safety and comfort, a fabric air plenum system for the proper distribution of cooling and heating throughout the entire shelter, a DRASHLITE 2-Light Set providing a total of 220 watts of fluorescent lighting, and an electrical set that includes portable outlets and extension cords.

More comprehensive packages that include power generation and distribution, as well as hardened flooring, are also available.

Standard Colors:

Tan (other colors available upon request).

Options:
Power Generation and Distribution, Hardened Flooring, etc.

Accessories/Replacement Parts:
F329601 - XB Strut Blue
F329631 - XB Strut Red
F329751 - XB Strut Green
F329781 - XB Strut Yellow
190223T - XB Spare Parts Kit
RDSP0032 - XB Lifting Pole



Shelter Specifications:

Exterior Dimensions:
ft.
15.3 x 23.3 x 10.6
m.
4.7 x 7.1 x 3.2
Interior Dimensions:
ft.
13.6 x 21.6 x 8.6
m.
4.1 x 6.6 x 2.6
Usable Area:
sp. ft.
249
sq. m.
23
Total Weight:
lbs.
403
kg.
182.8
Packed Dimensions:
in.
52 x 41 x 27.8
cm.
132 x 104 x 70
Packed Volume:
cu. ft.
34
cu. m.
.96
