DRASH Trailers

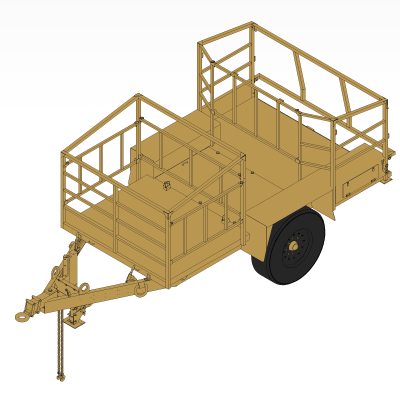

High Mobility Cargo Trailer

HMCT
NSN: 8340-01-513-9687 (Green)
NSN: 8340-01-513-9692 (Tan)

The DRASH High Mobility Cargo Trailer (HMCT) provides 210 cu. ft. of space and can
be used for other cargo-type functions such as loading and securing an ATV or motorcycle.


FEATURES
Genset Output [kW] N/A
Fuel Tank Capacity [Gal/l] N/A
ECU Output [ton] N/A
Cargo Volume [cu.f/cu.m.] 145 / 4.1

DIMENSIONS [in./m.] WEIGHTS [lbs./kg.]
Length 194 / 4.9 Tare 1,568 / 711
Width 86 / 2.2 Gross 4,200 / 1,905
Height 78 / 2.0 Tongue 420 / 191
