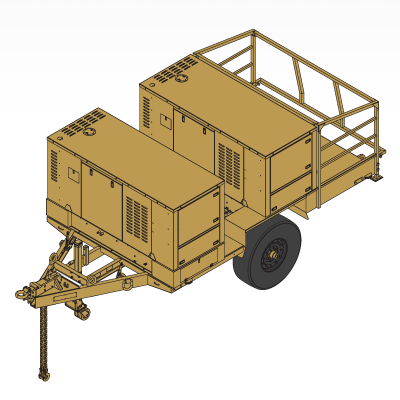

DRASH HP-4G/18 Intelligent Power Technology Trailer

Trailers Home
Trailer Photo Gallery

HP-4G/18 IPT
Intelligent Power Technology®
NSN: 8340-01-504-2616 (Green)
NSN: 8340-01-504-2617 (Tan)

The HP-4G/18 IPT combines the proven reliability and EMI features of the DRASH
TMSS with a digital smart system that reduces fuel consumption and increases efficiency.
It is the only DRASH trailer that has two 18 kW Gensets and two 16 gallon fuel tanks for
maximum power output.

FEATURES
Genset Output		[kW]	18 (x2)
Fuel Tank Capacity		[Gal/l]	16 / 60.6 (x2)
ECU Output		[ton]	N/A
Cargo Volume		[cu.f/cu.m.]	79 / 2.2

DIMENSIONS	[in./m.]	WEIGHTS	[lbs./kg.]
Length	190 / 4.8	Tare	4,719 / 2,141
Width	86 / 2.2	Gross	6,500 / 2,948
Height	78 / 2.0	Tongue	575 / 261
