DRASH Trailers
DRASH HP-J4 Trailer

HP-J4
NSN: 8340-01-533-1695 (Green)
NSN: 8340-01-533-1656 (Tan)

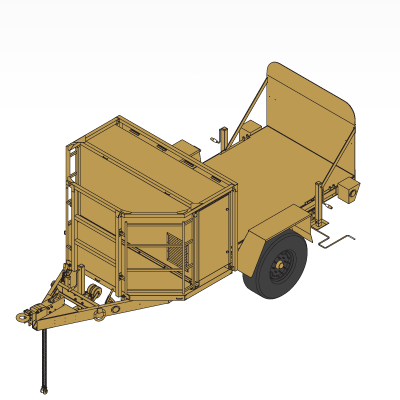

The HP-J4 UST Trailer is used specifically to transport the J Shelter
and its components. The manually-tilting trailer allows the shelter to
be pushed in place over an inflatable air bladder.


FEATURES
Genset Output [kW] 5
Fuel Tank Capacity [Gal/l] N/A
ECU Output [ton] N/A
Cargo Volume [cu.f/cu.m.] 270 / 7.7

DIMENSIONS [in./m.] WEIGHTS [lbs./kg.]
Length 209 / 5.3 Tare 2,588 / 1,174
Width 91.5 / 2.3 Gross 6,000 / 2,722
Height 80 / 2.0 Tongue 758 / 344
