DRASH Trailers

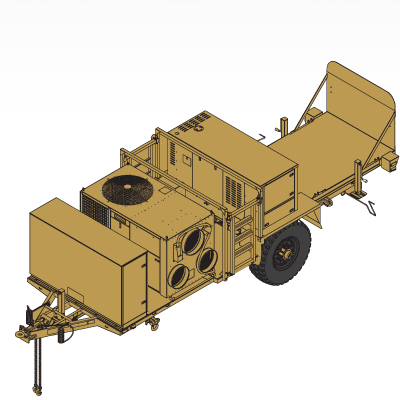

DRASH HP-8 Trailer

HP-8
NSNs: Pending

The HP-8 UST Trailer is typically combined with a DRASH J Shelter to allow
for a complete power, environmental control and mobility package that ensures
optimum operations even during extreme weather conditions.


FEATURES
Genset Output [kW] 33
Fuel Tank Capacity [Gal/l] 45 / 170.3
ECU Output [ton] 12
Cargo Volume [cu.f/cu.m.] 319 / 9

DIMENSIONS [in./m.] WEIGHTS [lbs./kg.]
Length 312.5 / 7.9 Tare 8,071 / 3,661
Width 96.8 / 2.5 Gross 12,000 / 5,443
Height 91 / 2.3 Tongue 1,080 / 490
