DRASH SKID MOUNTED ECU

SKID MOUNTED ECU
NSN: Pending [5 Ton]
NSN: 8340-01-513-9655 (Green), 8340-01-514-0798 (Tan) [8 Ton]
NSN: Pending [12 Ton]

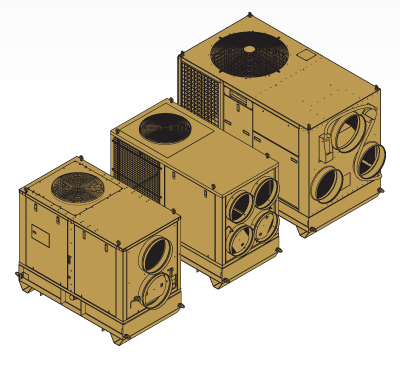

DRASH 5 Ton, 8 Ton and 12 Ton skid mounted ECUs are provided for situations
where a trailer is not necessary for mobility or other components.



  5 Ton 8 Ton 12 Ton
Ducts (supply/return) 2 4 3 or 4
Cooling Capacity (BTU/hr) 60,000 96,000 144,000
Heating Capacity (BTU/hr) 61,000 92,420 165,000

Length [in. / m.] 66 / 1.7 71 / 1.8 83 / 2.1
Width [in. / m.] 34 / .9 34 / .9 45 / 1.1
Height [in. / m.] 52 / 1.3 52 / 1.3 61 / 1.5
Weight [lbs. / kg.] 750 / 340.2 950 / 430.9 1,490 / 675.9
