DRASH Trailers

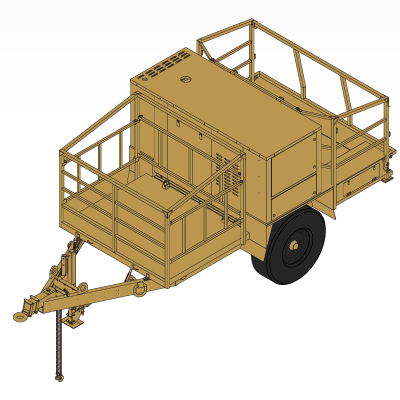

DRASH HP-2C Trailer

HP-2C/18
NSNs: Pending

The HP-2C/18 Trailer provides two primary features for the end user of a smaller
DRASH shelter - cargo space and power. It has a 145 cubic foot cargo area, includes
a 16 gallon fuel tank and comes with an 18 kW Genset.


FEATURES
Genset Output [kW] 18
Fuel Tank Capacity [Gal/l] 16 / 60.6
ECU Output [ton] N/A
Cargo Volume [cu.f/cu.m.] 145 / 4.1

DIMENSIONS [in./m.] WEIGHTS [lbs./kg.]
Length 194 / 4.9 Tare 2,862 / 1,298
Width 86 / 2.2 Gross 4,200 / 1,905
Height 78 / 2.0 Tongue 260 / 118
