DRASH Trailers

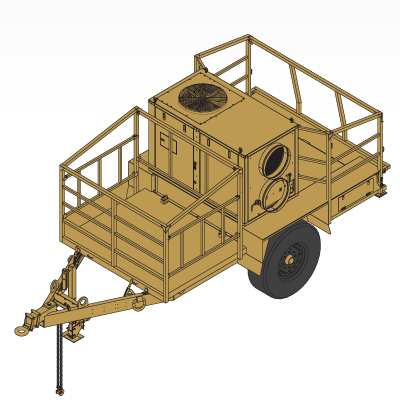

DRASH HP-2C/5E Trailer

HP-2C/5E
NSNs: Pending

The HP-2C/5E Trailer provides two primary features for the end user of a smaller
DRASH shelter - cargo space and environmental control. It has a 145
cubic foot cargo area, includes a 5 gallon fuel tank and comes with a 5 Ton ECU.


FEATURES
Genset Output [kW] N/A
Fuel Tank Capacity [Gal/l] 5 / 18.9
ECU Output [ton] 5
Cargo Volume [cu.f/cu.m.] 145 / 4.1

DIMENSIONS [in./m.] WEIGHTS [lbs./kg.]
Length 194 / 4.9 Tare 2,173 / 986
Width 86 / 2.2 Gross 4,200 / 1,905
Height 81 / 2.1 Tongue 240 / 109
